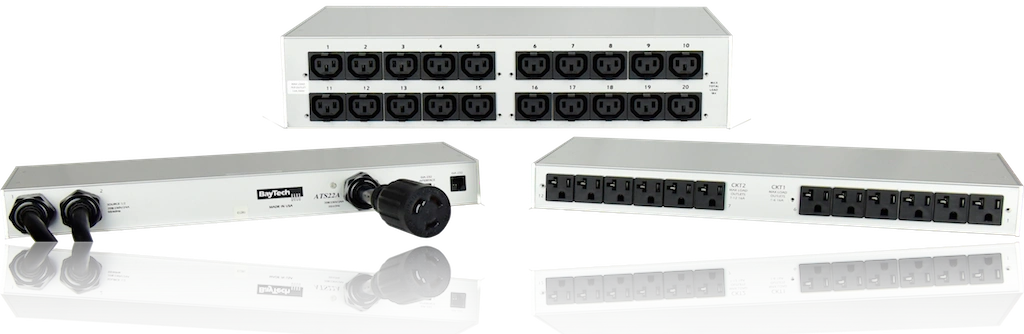

ATS
Automatic Transfer Switch

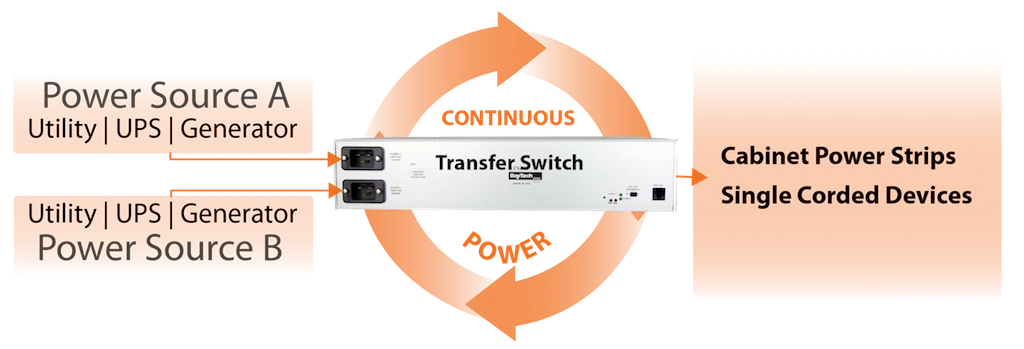

Providing redundancy at the power circuit level is critical to maintaining uptime. The ATS Series provides a simple and reliable solution for sensing power loss and seamlessly switching to a back-up circuit.

BayTech’s ATS transfer switch line offers a unique approach to performing the transfer. The ATS completely severs the connection between the source and load then waits for the zero-crossing to perform the transfer. This is the driving force behind being able to perform out-of-phase transfers with a low cost solution.

Power measurement is standard.


ATS DataSheet

  • Transfer time under 15ms
  • Single Phase solutions up to 32 amps, Three Phase to 32 amps
  • Status and Alarm Display
  • Local Console Interface
  • Accuracy +- 1.5% Full Load
  • 120-240 VAC Single Phase and 208/400VAC Three Phase

Features

LCD Display
LCD Display

Easily monitor input power as well as branch circuit power utilizing BayTech's easy to read color display. Displays turns red if alarm condition exists.

Sensor Ports
Sensor Ports

Monitor environmental conditions with two built-in sensor ports. Standard sensors include Temperature and Humidity.

Secure Connections
Secure Connections

All internal connections are secured with locking aids. Power connections utilize a lock washer as well as a nylon locknut.

Locking Receptacles
Locking Receptacles

Secure your assets with integrated Locking C13 receptacles.

PCB Mounted Receptacles
PCB Mounted Receptacles

Receptacles are securely mounted to a PCB. This has proven to be much more reliable than ISD's (Insulation Displacement) and hand soldered wires.
